Vacuum Arms, Side Weld and Wicket Parts
Vacuum Arms,
Side Weld and Wicket Parts
Side Weld machines are designed to be incredibly durable however, there are still wear parts that need replacement over time.
Here at BagMachineParts and through our parent company (Modern Manufacturing Services) we have the exclusive rights to manufacture Scheldahl Side Weld Bag machines. With this in mind, we maintain a large inventory of Scheldahl and other side weld parts.
If you are not sure which side weld parts you need, we can help you research the correct parts. Just send an email to: Sales@BagMachineParts.com and we'd be glad to assist you.
Note: a photo of the part is always helpful with our researching process.
Wicket Parts
| Part # | Description | Machine Type | Images |
|---|---|---|---|
| PSW-0148 | Wicket Pin | Ro-An |
PSW-0148 Wicket Pin |
| S-44406 | Wicket Pin | ||
| S-44406-N | Wicket Needle |
Vacuum Arms
| Part # | Description | Machine Type | Images |
|---|---|---|---|
| S-50326 | 20" Vacuum Arm RH | Scheldahl |

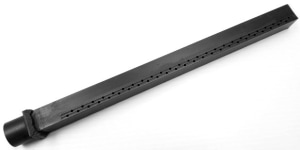

S-43904 Vacuum Arm 14" LH |
| S-50327 | 20" Vacuum Arm LH | Scheldahl | |
| S-43906 | 16" Vacuum Arm RH | Scheldahl | |
| S-43907 | 16" Vacuum Arm LH | Scheldahl | |
| S-43904 | 14" Vacuum Arm LH | Scheldahl | |
| S-43905 | 14" Vacuum Arm RH | Scheldahl |
Wicket Conveyor Parts
| Part # | Description | Machine Type |
|---|---|---|
| S-44311-7 | 7" Rope Belt, 3/16" diameter | Scheldahl |
| S-44311-16 | 16" Rope Belt, 3/16" diameter | Scheldahl |
| S-44311-20 | 20" Rope Belt, 3/16" diameter | Scheldahl |
| S-44311-36 | 36" Rope Belt, 1/4" diameter | Scheldahl |
| S-44311-43 | 43" Rope Belt, 3/16" diameter | Scheldahl |
| S-44311-44 | 44" Rope Belt, 1/4" diameter | Scheldahl |
| S-44311-48 | 48" Rope Belt, 3/16" diameter | Scheldahl |
| S-44311-50 | 50" Rope Belt | Scheldahl |
| S-44311-52 | 52" Rope Belt | Scheldahl |
| S-44311-54 | 54" Rope Belt | Scheldahl |
| S-44311-58 | 58" Rope Belt | Scheldahl |
| S-44311-60 | 60" Rope Belt, 3/16" diameter | Scheldahl |
| S-44311-62 | 62" Rope Belt | Scheldahl |
| S-44311-68 | 68" Rope Belt | Scheldahl |
| S-44311-70 | 70" Rope Belt, 3/16" diameter | Scheldahl |
| S-44311-72 | 72" Rope Belt, 3/16" diameter | Scheldahl |
| S-44311-73 | 73" Rope Belt (same as 6C097203), 3/16" diameter | Scheldahl |
| S-44311-80 | 80" Rope Belt, 3/16" diameter | Scheldahl |
| S-44311-100 | 100" Rope Belt, 3/16" diameter | Scheldahl |
| S-44311-111 | 111" Rope Belt, 3/16" diameter | Scheldahl |
| S-50036 | Rope Pulley Plate | Scheldahl |
| S-50037 | Rope Plate Clamp | Scheldahl |
| S-50038 | Dual Pulley Shaft | Scheldahl |
| S-50041 | Rope Belt Pulley, Nylon spindle | Scheldahl |
| 403666 | Rope Belt Pulley-4 rope | Hudson-Sharp |
| 403684 | Rope Belt Pulley-3 rope | Hudson-Sharp |
| 403667 | Rope Belt Pulley-2 rope | Hudson-Sharp |
| 403685 | Rope Belt Pulley | RO-AN |
S-44311-72
72" Rope Belt

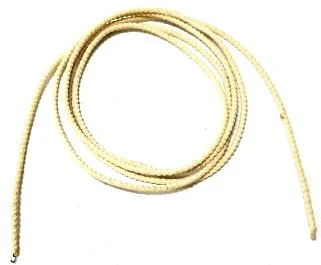

S-44311-52
52" Rope Belt

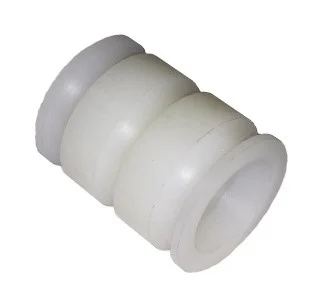

S-50041
Rope Belt Pulley
