Unwind Parts
Unwind Parts
At BagMachineParts.com we have a dedicated team of technical engineers and suppliers that provide world class parts for all unwind systems. This ensures a quick turnaround to all inquiries, with the highest quality available. This will ensure optimal performance in your production lines.
We offer a very short lead time to reduce or even eliminate down time of your machine. It goes without saying that downtime causes delayed or even lost revenue.
Whatever your requirement (air shafts, brakes, core or safety chucks) we will be pleased to help keep your production running and improve your line's productivity.
We carry a large range of spare parts in order to provide our customers quick turnaround. If you are not sure which spare parts you need, we can help you identify the correct parts. Just send an email to: sales@BagMachineParts.com and we'd be glad to assist you.
Note: a photo of the part is always helpful with our researching process.
Core Chucks
| Part # | Description | Machine Type |
|---|---|---|
| S-01376 | Core Chuck: 3" Outside Diameter x 1" Bore | Scheldahl |
| S-03584 | Core Chuck: 3" Outside Diameter x 1-1/2" Bore | Scheldahl |
| S-03584-1.25 | Core Chuck: 3" Outside Diameter X 1-1/4" Bore | Scheldahl |
| S-03584-1.375 | Core Chuck: 3" Outside Diameter X 1-3/8" Bore | Scheldahl |
| S-17858 | Core Chuck: 6" Outside Diameter x 1 1/2" Bore | Scheldahl |
S01376
Core Chuck: 3" Outside Diameter 1" Bore

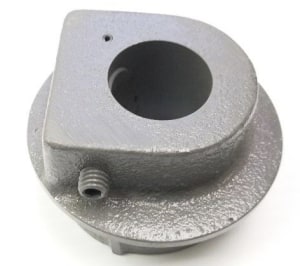

S-03584-1.25
Core Chuck: 3" Outside Diameter 1.25" Bore

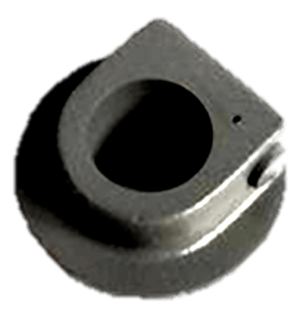

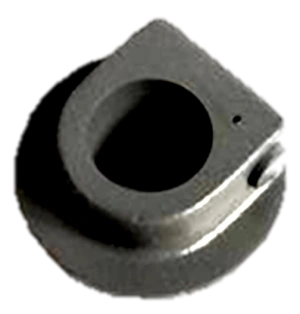

S-03584
Core Chuck: 3" Outside Diameter 1-1/2" Bore

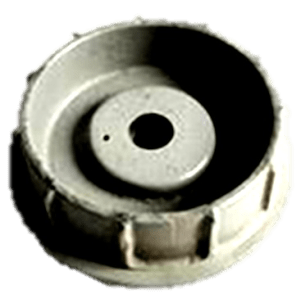

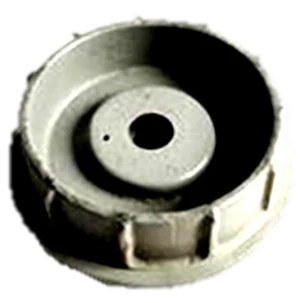

S-17858
Core Chuck: 6" Outside Diameter 1 1/2" Bore
Safety Chucks
| Part # | Description |
|---|---|
| 401731 | 30mm Safety Chuck, U-SQ, W/O Shaft (Non-Drive) |
| 300792 | 30mm Safety Chuck, U-SQ, W/3.273 Shaft, Ø1-3/8" |

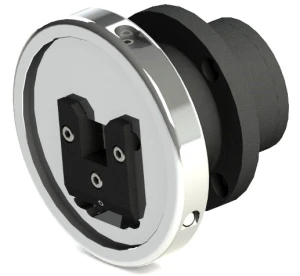

401731
30mm Safety Chuck,
U-SQ, W/O Shaft
(Non-Drive)

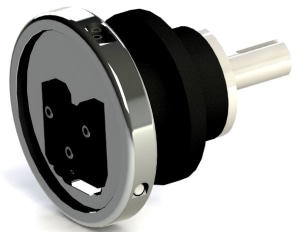

300792
30mm Safety Chuck,
U-SQ, W/3.273 Shaft,
Ø1-3/8
Brakes
| Part # | Description |
|---|---|
| Manual | |
| S-00450 | Drag Brake Short 12" x 24" |
| 403457 | Drag Brake Long 12" x 72" |
| Pneumatic | |
| 400437 | Pneumatic Brake, 100 in-lbs torque |
| 402472 | Pneumatic Brake, ultra-low COF pads, 1.125" Bore |
| 400845 | Pneumatic Brake, ultra-low COF pads, 1.375" Bore |
S-00450
Drag Brake Short 12" x 24"
400437
Clutch Brake 100 in-lbs torque

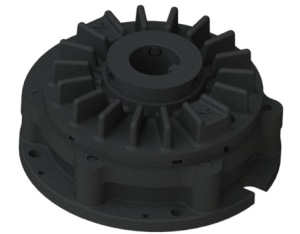

400845
Pneumatic Brake, ultra-low COF pads
Air Shafts
| Part # | Description |
|---|---|
| 402917 | 3" OD x 24" Face Air Shaft – 30mm, SQ Ends |
| 402238 | 3" OD x 48" Face Air Shaft – 30mm, SQ Ends |
| 402820 | 3" OD x 52" Face Air Shaft – 30mm, SQ Ends |
| 401733 | 3" OD x 50" Face Air Shaft – 30mm, SQ Ends |
| 500424 | Nozzle, Air Shaft Inflation |

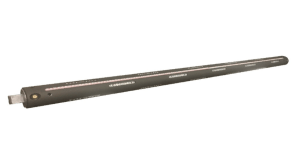

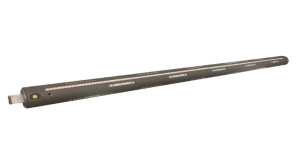

402820
3" OD x 52" Face, Air Shaft, 30mm, SQ Ends

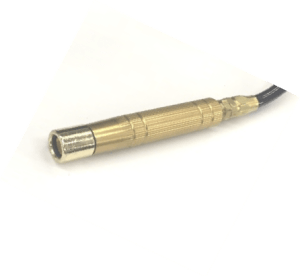

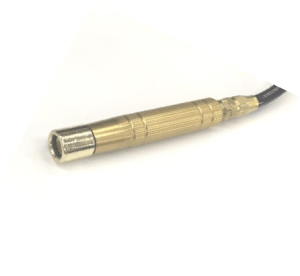

500424
Nozzle, Air Shaft Inflation
