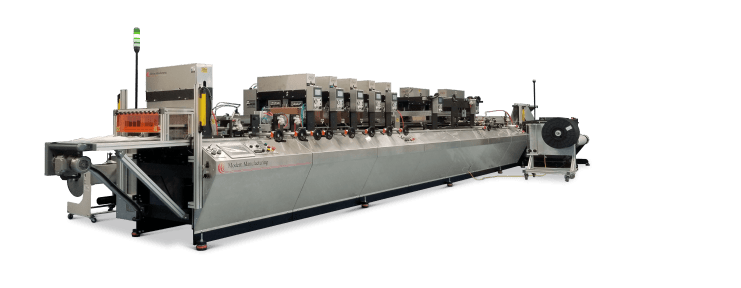

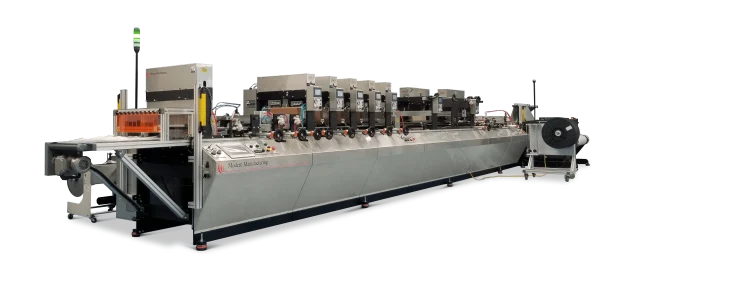

Pacer-356 compact

Designed to fulfill the narrow web Stand-up pouch market, the compact Pacer pouch making machine is suited for the short run market place. It is a perfect fit for narrow web and digital printing market place.

Get a quote
Pacer-356

The next steps in the evolution of the pouch making process

The compact Pacer pouch making machine is suited for the short run market place. It is a perfect fit for narrow web and digital printing market place.

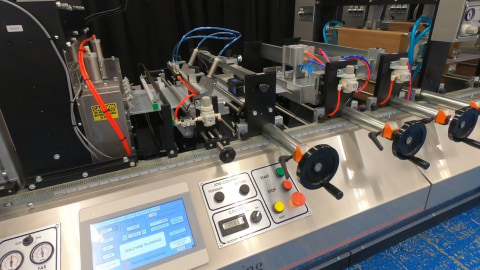

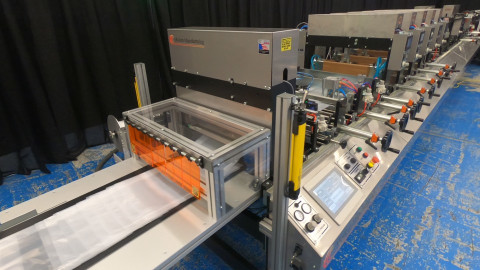

Standard features included

  • Independent servo draw systems
  • Servo knife with independent servo sealers/coolers
  • Built-in flange zipper system
  • Five-zone web-tension control

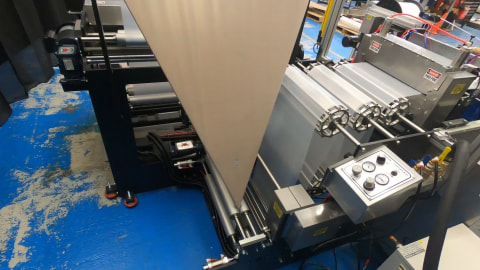

  • Nip-driven unwind system
  • Built-in indexing conveyor
  • Two independent punch carriages (one with tear notch and one with hanger hole)
  • Auto-Tune temperature controls
  • Heater and thermocouple break alarms
  • Eye averaging function (smoothing function)
  • Built-in 2nd cut feature

Pouch configurations

  • Two side seal
    Two side seal
  • Three side seal
    Three side seal
  • Three side seal with zipper
    Three side seal with zipper
  • Header seal
    Header seal
  • Stand-up K-seal
    Stand-up K-seal
  • Stand-up Doyen seal
    Stand-up Doyen seal
  • Stand-up K-seal with skirt seal
    Stand-up K-seal with skirt seal
Download configurations PDF

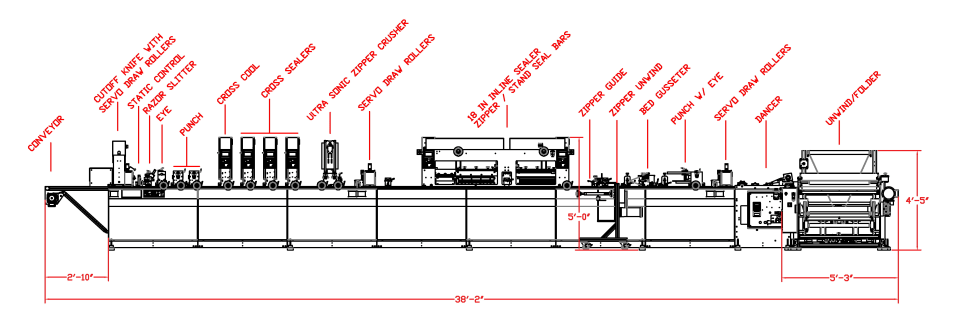

Machine Foot Print

Pacer-356 foot print

Equipment options

Optional Punch Shapes and Sizes
Tear notch, hanger hole, sombrero, corner round, handle hole.
Digital Readouts for Carriage Positioning
Provides a more precise location positioning with absolute or incremental settings. Inch and metric conversion provided.
Closed Loop Chiller System
For maintained chilled water supply.
Coreless Trim Rewinder
Easy change spools, traverse wound trim with small foot print.
Vacuum Punch Slug Removal
This option provides a clean vacuum removal system for punch slugs.
Web Tracking Guide
Guides film at the front of the machine, allowing better accuracy for punches, web slitting and other pouch features. Eliminates side wander.

Pacer-356 compact specifications

Stand-Up pouch making machine
14 inch (356 mm)
Max pouch height
14 inch (355 mm)
Max lay-flat web width
30 inch (711.2 mm)
Mechanical speeds
150 CPM
Max roll diameter
24 inch (610 mm)
Electrical requirements
208 / 220 VAC, 75 AMP
Standard core size
3 inch (76 mm)
Servo actuated machine air requirements
12 CFM @ 90 PSI
Min/max gusset size
0.5 inch - 2.5 inch (1.0 / 5 open) (13 / 64 mm)
Water
12 GPM @ 50-55 °F
Min/max pouch width
2 inch - 12 inch without skip feed (200 inch with skip feed) (203/305 mm)
