Making Machine:
Flat bottom pouch and stand-up pouch suitable for small volume production of digital and pet packaging
Overview:

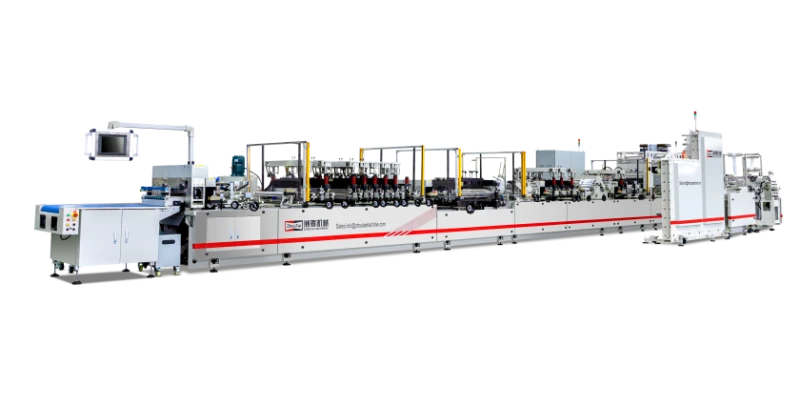

Compared to traditional flat bottom pouch making machine, AMD450FSL-S machine is more compact and shorter, which saves spare in the workshop and is easy for the operators to adjust. The new technical features of the machine make it even more suitable for digitally printed and recyclable materials.
Equipment Options
-
Comprehensive functionality covering gravure, flexographic, and digital printing, supporting printing characteristics and all standard bag sizes.
-
Low equipment wear and short setup time.
-
Extensive optional features, including handle attachment, various zippers and sliders, bottom-fold gluing, hot stamping, and multiple ventilation and degassing processes.
AMD450FSL-S Specifications
Performance:
Quad Seal, Flat Bottom Pouch, Stand-up Pouch（With Zipper）
Body Film:
Upper Film Max Width 460mm; Down Film Max Width1040mm;
Side Gusset Width:
Max Width 250mm
Max Diameter of the Roll:
Max φ800mm, Side Gusset: Max φ800mm
Speed:
25~100 Cuts/min
Material Speed:
30 Meters/min
Width of Bag:
Max 300mm, Min 100mm
Height of Bag:
Max 450mm, Side Gusset: 25~60mm

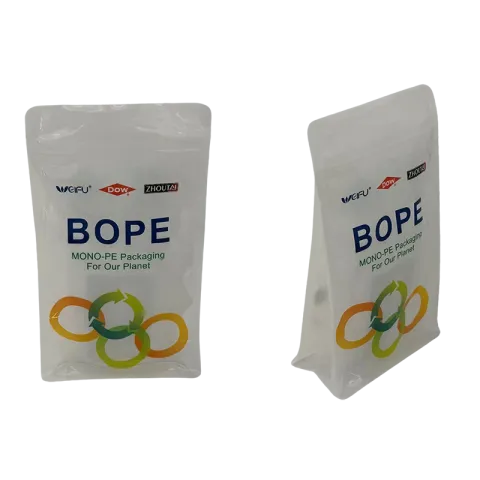

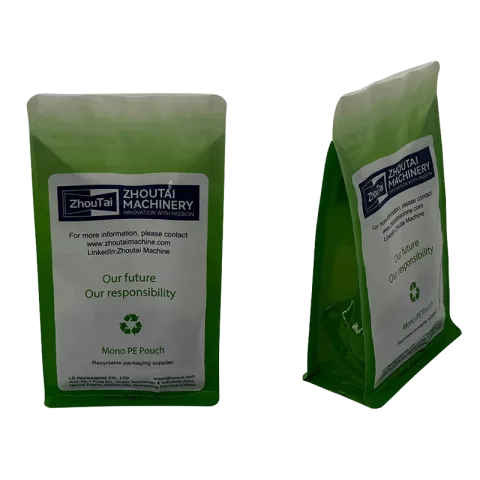

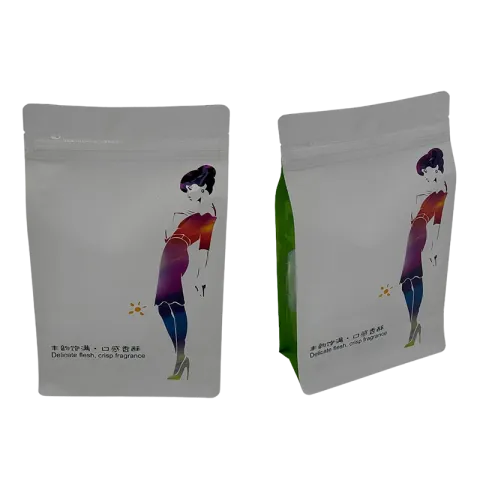

Pouches Pictures:
